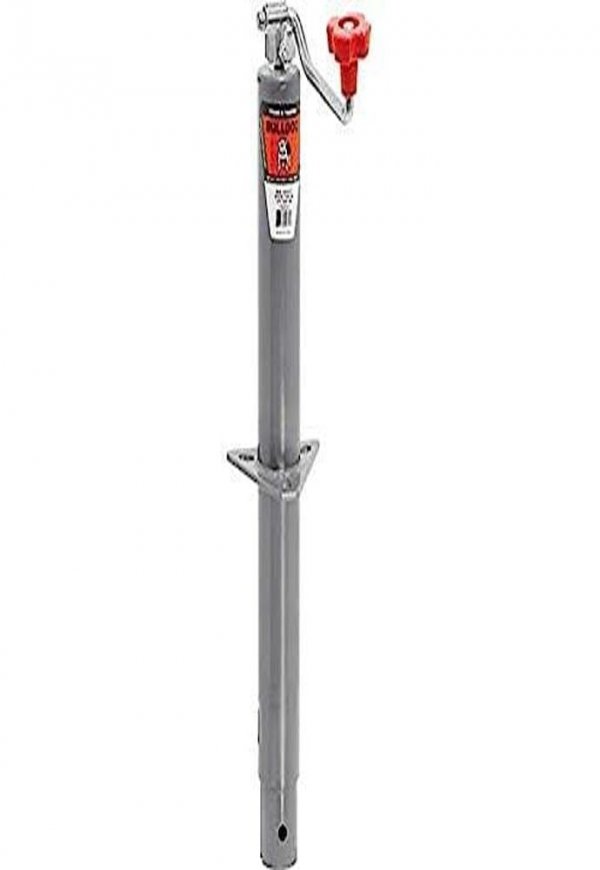

Bulldog 1750290317 Twl 175 X Aframe 5000Lbs Lift Capacity

About this product

Round, A-Frame Jack Topwind 15 Lift 5,000 Lbs
Dependable Jack Is Recognized As Industry Standard For Agricultural And Commercial Applications
Asabe Compliant
Precision-Fitted Parts Provide Exceptional Stability And Reliability
Weld-On/Bolt-On Bracket Mounts To Any Standard A-Frame Coupler
Topwind Handle Has Smooth, Ergonomic Design For Easy Cranking
Requires 8 Handle Rotations For Every 1 Of Lift
Outer And Inner Tubes Are Gray-Paint Finished
Footplate Or Caster Assembly Sold Separately

Specs:
Bracket Height:
10-13/16 Retracted
25-13/16 Extended
Lift: 15
Clearance: 10-11/16 From Mounting Bracket To Top Of Jack
Inner Tubing Diameter: 2
Outer Tubing Diameter: 2-1/4
Handle Radius: 6-5/8
Lift Capacity: 5,000 Lbs
