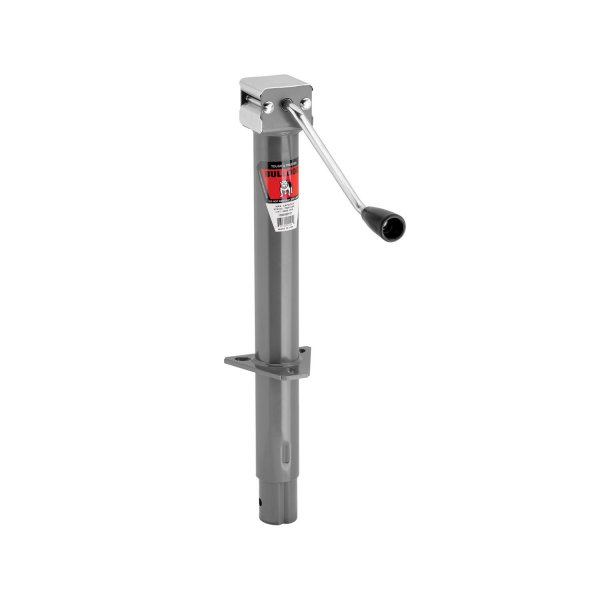

Bulldog 1700100117 Aframe Jack Sidewind 15" Travel Weldon/Bolton 5000Lb Capacity

About this product

Round, A-Frame Jack Sidewind 15 Lift 5,000 Lbs

Dependable Jack Is Recognized As Industry Standard For Agricultural And Commercial Applications
Asabe Compliant
Precision-Fitted Parts Provide Exceptional Stability And Reliability
Weld-On/Bolt-On Bracket Mounts To Any Standard A-Frame Coupler
Sidewind Handle Has Smooth, Ergonomic Design For Easy Cranking
Outer And Inner Tubes Are Gray-Paint Finished
Footplate Or Caster Assembly Sold Separately

Specs:
Bracket Height:
8-5/8 Retracted
23-5/8 Extended
Lift: 15
Clearance: 14-3/4 From Mounting Bracket To Top Of Jack
Inner Tube Inside Diameter: 1-3/4
Inner Tube Outside Diameter: 2
Outer Tube Diameter: 2-1/4
Handle Radius: 6-11/16
Slotted Bolt Holes On Mounting Flange: 7/16 Wide X 7/8 Long
Lift Capacity: 5,000 Lbs
