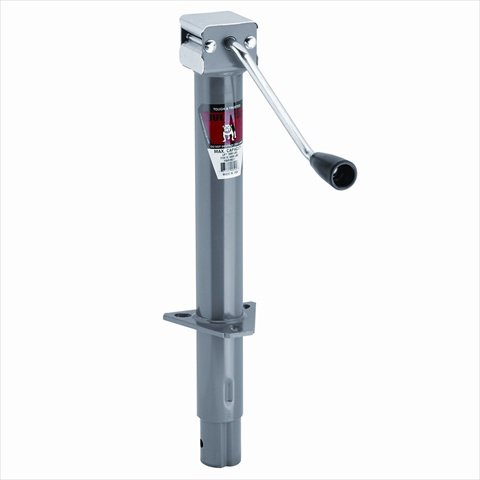

Bulldog 1550100317 Aframe Jack Sidewind 13" Travel 7" Bracket 3000Lbs

About this product

Round, A-Frame Jack Sidewind 13 Lift 3,000 Lbs

Dependable Jack Is Recognized As Industry Standard For Agricultural And Commercial Applications
Asabe Compliant
Precision-Fitted Parts Provide Exceptional Stability And Reliability
Weld-On/Bolt-On Bracket Mounts To Any Standard A-Frame Coupler
Sidewind Handle Has Smooth, Ergonomic Design For Easy Cranking
Outer And Inner Tubes Are Gray-Paint Finished
Footplate Or Caster Assembly Sold Separately

Specs:
Bracket Height:
7 Retracted
20 Extended
Lift: 13
Clearance: 14-1/2 From Mounting Bracket To Top Of Jack
Inner Tubing Diameter: 2
Outer Tubing Diameter: 2-1/4
Handle Radius: 5-13/16
Lift Capacity: 3,000 Lbs
