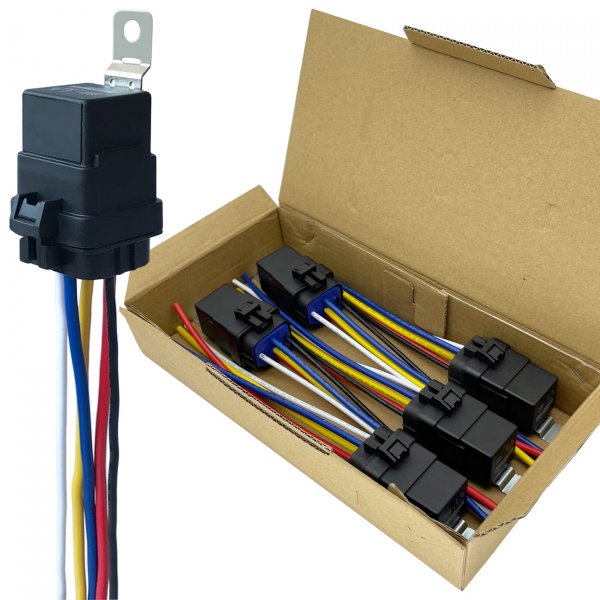

5-pin 40/30Amp 12V DC Waterproof Automotive Relay with Heavy-Duty Wire

About this product

Nominal Coil Voltage: 12 V DC Coil Power: 1.8 W Coil Resistance: 80 Ω Must Operate Voltage: 6~8 V DC Must Release Voltage: 0.6~3.6 V DC Maximum Applied Voltage: 15.6 V DC Contact Ratings: NO 40A 14V DC Contact Resistance: 100mMAX (at6VDC 1A) Max Switching Current: 40A Max Switching Power: 560 W Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute) Life Expectancy Machanical: 10,000,000 Operations Temperature Range: -30 ~ +80 degrees Celsius Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g Hunidity: 40% ~ 85% Insulation Resistance: 100mΩ Min at500VDC Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec) Between Contactw and coil: 750AC (for one minute/sec) Operate Tice: 7ms Release Tice: 5ms Package Content: 5 x 12VDC waterproof relay kit
