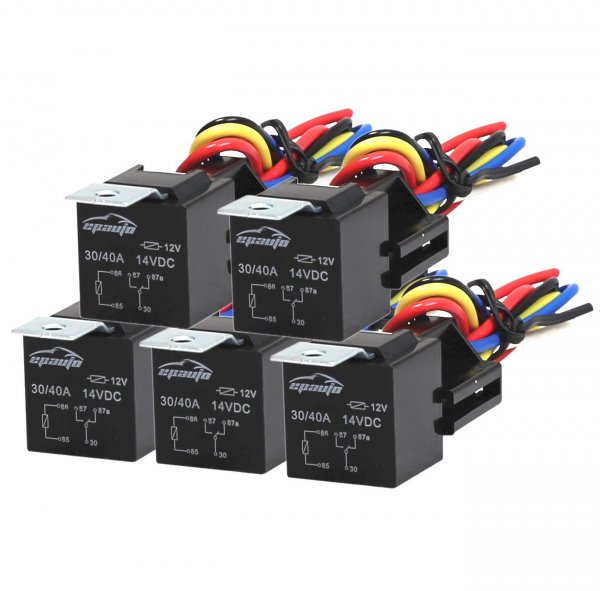

EPAuto 30/40 AMP Relay Harness Spdt 12V, 5-PIN SPDT Bosch Style - 5 Pack

About this product

Contact Capacity: Normal switching Capacity (res.load): - NO 40A 14VDC - NC 30A 14VDC Max. switching current: 40A Max. switching voltage: 30VDC Max. switching power: 560W Characteristic Data: Initial contact resistance (at 6VDC 1A): 50mΩ Max. Operate time (at nominal volt.): 10 msec. Max. Release time (at nominal volt.): 5 msec Max. Initial insulation resistance: 100MΩ Min. (DC500V) Initial dielectric strength: - Between open contacts: AC500V, 50/60 Hz 1Min. - Between coil and contact: AC500V, 50/60 Hz 1Min. Vibration resistance: - Functional: 10 ~ 55Hz at double amplitude of 1.5 mm - Destructive: 10 ~ 55Hz at double amplitude of 1.5 mm Shock resistance: - Functional: 20G Min. - Destructive: 100G Min. Endurance (operations): - Mechanical (at 7,200 ops./h): 10,000,000 - Electrical (at 600 ops./h): 100,000 Ambient Temperature: -40°C ~ +125°C (no condensation)
