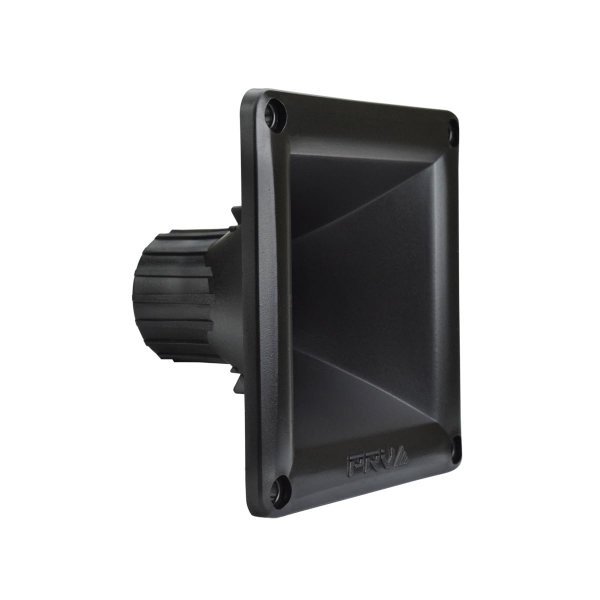

PRV AUDIO 1 Inch Exit Waveguide WG11-25 Non-resonant Reinforced Plastic Construction (ABS) Screw On Exponential Horn for 1 in Compression Drivers

About this product

Screw-On compact PRV Audio’s WG11-25 exponential horn. At under 3″ of depth this horn makes installation easy in tight spaces. A standard 1-3/8″-18 TPI Screw on mount is compatible with most 1″ compression drivers. The WG11-25 is constructed from non-resonant ABS plastic making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1200 Hz. Highlights Under 3″ of mounting depth for installation in tight spaces 1″ Exit throat Non-resonant reinforced plastic construction Minimum recommended frequency of 1200 Hz Specifications: Throat Diameter: 1” (25.4mm) Mounting Type: Screw-on Thread dimensions: 1-3/8″ Nominal Coverage Horizontal: 60° Vertical: 60° Flare type: Exponential Material: Plastic (ABS) Finish / Coating: Black Dimensions Height: 4.5″ (115mm) Width: 4.5″ (115mm) Depth: 2.95″ (75mm) Mount Depth: 2.71″ (69mm) Baffle Cutout Width: 3.31″ (84mm) Height: 3.31″ (84mm) Net weight: 0.18lb (0.08kg)
