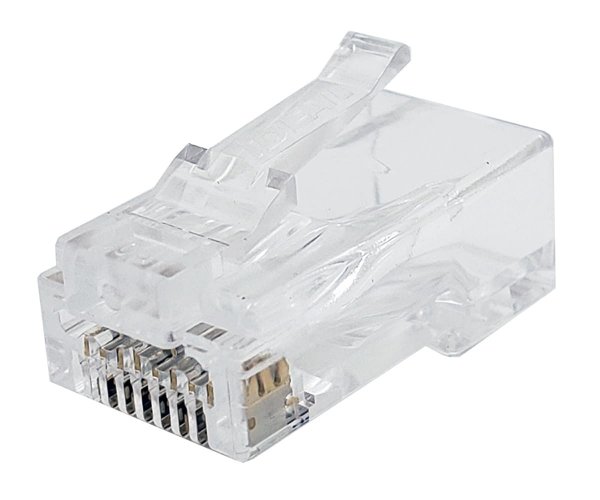

Ideal Electrical 85-385 Unshielded Feed-Thru Modular Plug, Cable Connector for CAT6A/6 Unshielded Cables, 50 Connectors

About this product

These single piece 8P8C RJ-45 connectors are designed to work with cable conductors ranging from 22 to 24 AWG solid with an overall insulated diameter of 0.040” - 0.048” per conductor. The single piece Feed-Thru design simplifies the challenges faced when assembling and terminating twisted pair cables with larger diameter conductors, over 0.041”, when use of a standard in-line connector is not an option. A unique staggered conductor hole layout and multi-length contact pins are incorporated to accommodate the larger conductors. The single-piece housing design helps to funnel the conductors through the connector and out of the Feed-Thru end. No precision length trimming, load bars or multi-piece assemblies are required. The connectors are then terminated with the FT-45™ Modular Plug Crimp Tool. The FT-45™ Crimp Tool does not require any adjustments or blade changes to use these connectors. The unshielded connector is designed for 0.040” through 0.048” insulated conductors which are typically found in CAT6A and CAT6, shielded cables. Pin contacts are a 3 prong design and have 50u” gold plated contact areas. Plugs are UL Listed. The FT-45™ crimp tool, (IDEAL® 30-495) is required to properly terminate these connectors.
