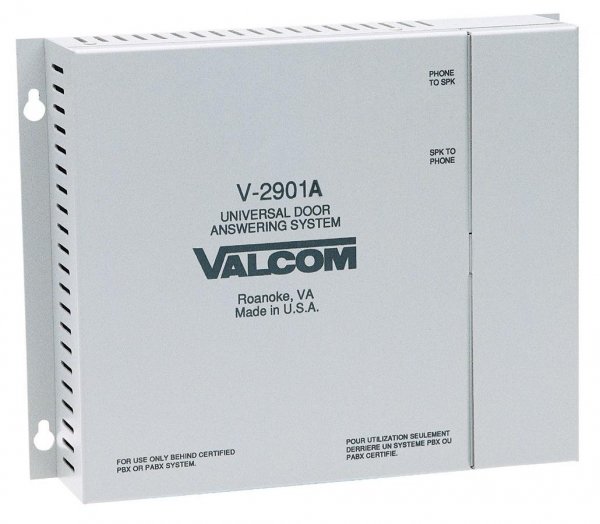

Valcom V-2901A Door Answer Device - Single

Name: Valcom V-2901A Door Answer Device - Single
Brand: VALCOM

VALCOM Model: VC-V-2901A UPC: 799111004976 Home Security Systems Telephone Accessories

★ ★ ★ ★ ★ 4.0 (1 reviews)

Compare Prices

Single door answering device

Push a button to initiate two-way communication from the door speaker to telephone, then dial a programmablecode to unlock the door

Activates door locks

Door unlock contact closure (strikeplate required)

Alarm functions

Transmit and receive volume control

Background music input with volume control

Built-in ring generator with on/off switch

3 Distinctive ring patterns

Programmable options include door unlock codes, number of ring cycles before door request is terminated, time the door remains unlocked (per door)

Requires -24 Vdc, 600 mA (filtered) 10 Vac lamp

Access: PBX loop start trunk port, electronic or 1A2line key (line card required), or dedicated single line phone set

Input impedance: 600 ohm

Ouput impedance: 45 ohm

Music level: -10dBm nominal

Music input 4 to 600 ohms

Power requirement: -24 Vdc, 600 mA

Weight 4.8lbs

Dimensions: 8.6"H x 11"W x 2.3"D
