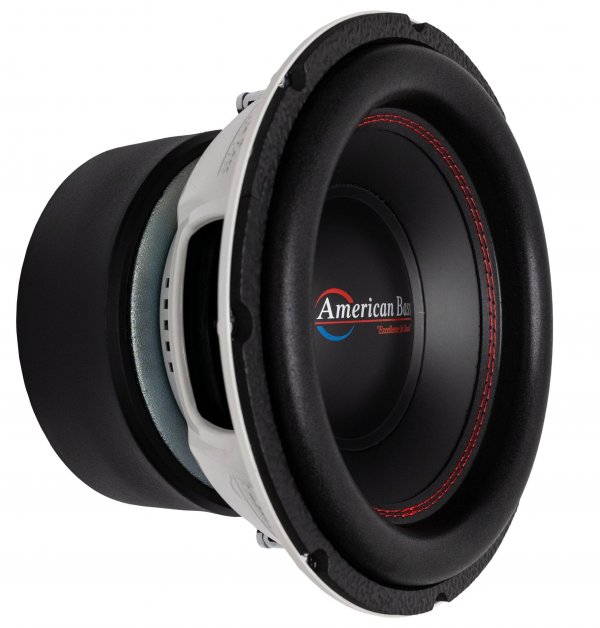

American Bass TITAN1044 Titan 10 Woofer, 800W RMS/1600W Max

About this product

American Bass 10" Woofer, 800W Rms/1600W Max, Dual 4 Ohm Voice Coils
1600 Watts Max
800 Watts Rms
3 Voice Coil With Nomex Protection
Kevlar Fiber Enforced Non-Pressed Paper Cone
Red Stitched 3-Layer High Density Foam Surround
Hi-Temp Dual 4 Ohm 4-Layer Voice Coil
Mirror Image Double Conex Spider System
Double Stacked Hi-Energy Y35 Magnets (170 Oz. Total)
White Powder Finish Heavy-Duty Stamped Basket
Perimeter Vents For Voice Coil Cooling

Mount Depth: 6.5

Specifications:
Re Ohm: 6.4
Fs Hz: 36.01
Sd: 334.56
Md: 150G
Bl: 21.14
Qms: 4.37
Qes: 0.66
Qts: 0.57
No: 0.14
Spl: 84.2 Db
Vas: 15.23 L
Cms: 95.82
Krm: 18.47
Erm: 0.76
Mms: 203G
Mmd: 200
Kxm: 61.99
Exm: 0.69
Xmax: 17.5 Mm
