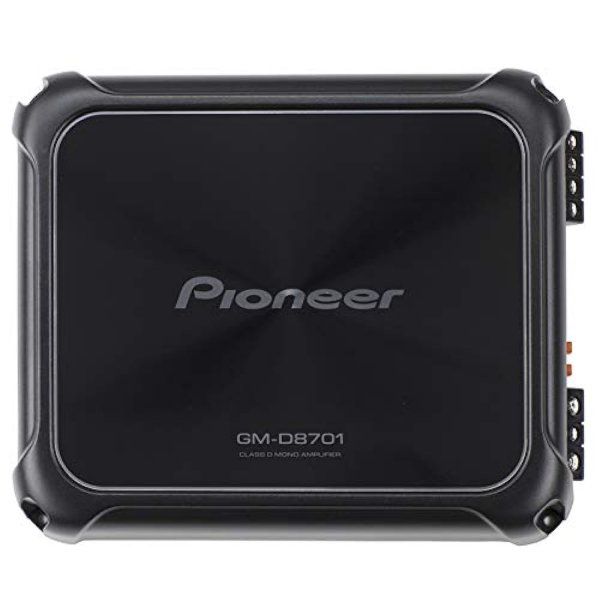

Pioneer GMD8701 Mono Class D Amplifier 1600W Max Bass Knob

About this product

GM Digital Series Monoblock Class D Car Amplifier
RMS Power Rating:
4 ohms: 300 watts x 1 chan.
2 ohms: 500 watts x 1 chan.
1 ohm: 800 watts x 1 chan.
Max power output: 1500 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
High-density split-dome convection heat-sink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
Low level: 200mV-6.5V
High level: 0.8V-16V
Variable low-pass filter (40-240 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 10-240 Hz
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 10-7/16"W x 2-3/8"D x 7-7/8"H
